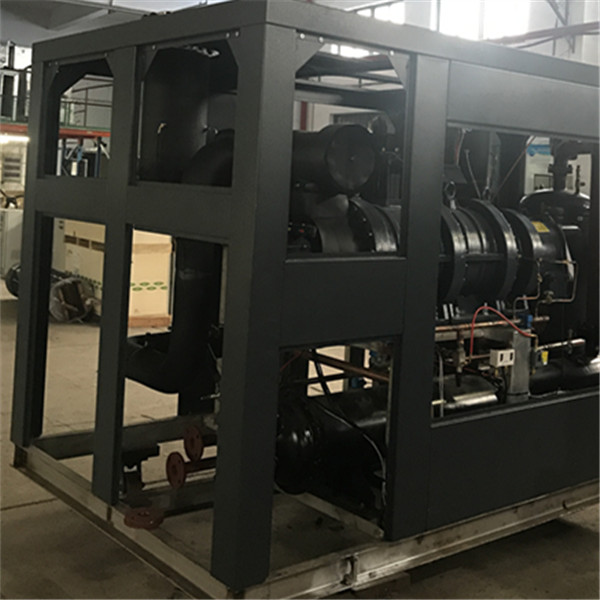

55009A BAYL-4800W/5Y Air pre-cooler

55000 series - Pre cooler and cryogenic machine

Tag No.: 55009A

Model: BAYL-4800W/5Y

Name: Air pre-cooler

1.Technical parameter

SN

Name

Parameter

1.1

Model

BGYL－050F/44Y

1.2

Natural gas processing capacity

900 Kg/h

876.1 Kg/h

876 Kg/h

1.3

Inlet temperature

60℃

53℃

66℃

1.4

Natural gas inlet pressure

4.41 MPa G

4.2 MPa G

0.03 MPa G

1.5

Cooling method

Air cooling

1.6

Power

400 V//50 HZ

1.7

Work mode

Continuous work

1.8

Natural gas outlet temperature

40℃

40℃

40℃

1.9

Rated cooling capacity

52 KW

1.10

Shaft power

20 KW

1.11

Rated power

30 KW

1.12

Operating current

33 A

1.13

Minimum distribution power

30 KW

1.14

Energy regulation

33% to 100% infinitely adjustable

1.15

Diameter of natural gas connection pipe

（DN50）

1.16

Pressure loss

≤（10 KPa）

1.17

Refrigerant

R134A

1.18

Cooling method

Air cooling

1.19

Structure

Copper sleeve aluminum fin

1.20

Ambient temperature

≤42℃

1.21

Number of blowers

2 sets

1.22

Single blower air capacity

15000 m3/h

1.23

Single blower power

1.1 KW

1.24

Protection grade of motor

ExhdⅡ BT4

1.25

Equipment installation location

Indoor

N1

Remark



N1.1

The cooling capacity refers to the cooling capacity of compressed natural gas under standard conditions of inlet and outlet, with an ambient temperature of ≤42℃.



2. 设计及运行条件

Design and operating conditions

序号

SN

名称

Name

参数

Parameter

2.1

介质

Medium

天然气

Natural gas

2.2

电源要求

Power requirements



2.2.1

电压

Voltage

400 V/

2.2.2

频率

Frequency

50 HZ



3. 产品构成

Product Composition

序号

名称

单位

数量

3.1

防爆压缩机

Explosion proof compressor

台

Set

1

3.2

风冷冷凝器

Air-cooled condenser

片

Pc

2

3.3

冷凝风机

Condenser blower

台

Set

2

3.4

油分离器

Oil separator

台

Set

1

3.5

排气截止阀

Outlet globe valve

只

Pc

1

3.6

储液桶

Liquid storage tank

台

Set

1

3.7

出液阀

Outlet valve

只

Pc

1

3.8

干燥过滤器

Dry filter

只

Pc

1

3.9

干燥滤芯

Dry filter element

只

Pc

1

3.10

1#蒸发器

1 # evaporator

台

Set

1

3.11

液路截止阀

Liquid circuit globe valve

只

Pc

1

3.12

液路电磁阀

Hydraulic solenoid valve

只

Pc

1

3.13

膨胀阀

Expansion valve

只

Pc

1

3.14

2#蒸发器

2 # evaporator

台

Set

1

3.15

液路截止阀

Liquid circuit globe valve

只

Pc

1

3.16

液路电磁阀

Hydraulic solenoid valve

只

Pc

1

3.17

膨胀阀

Expansion valve

只

Pc

1

3.18

3#蒸发器

3 # evaporator

台

Set

1

3.19

液路截止阀

Liquid circuit globe valve

只

Pc

1

3.20

液路电磁阀

Hydraulic solenoid valve

只

Pc

1

3.21

膨胀阀

Expansion valve

只

Pc

1

3.22

冷媒压力表

Cooling medium pressure gauge

只

Pc

2

3.23

压力传感器

Pressure sensor

只

Pc

2

3.24

温度传感器

Temperature sensor

只

Pc

6

3.25

回油过滤器

Return oil filter

只

Pc

1

3.26

回油电磁阀

Return oil solenoid valve

只

Pc

1

3.27

视油镜

Oil sight glass

只

Pc

1

3.28

防爆电磁阀线圈

Explosion proof solenoid valve coil

只

Pc

4

3.29

带保护罩球阀

Ball valve with protective cover

只

Pc

3

3.30

安全阀

Safety valve

只

Pc

3

3.31

制冷剂

Refrigerant

项

Pc

1

3.32

PLC

项

Pc

1

3.33

防爆电箱

Explosion proof electrical box

只

Pc

1

3.34

接触器

Contactor

项

Pc

1

3.35

设备外壳

Equipment shell

项

Pc

1

3.36

机组底架

Compressor unit chassis

项

Pc

1

3.37

连接铜管

Connecting copper pipes

项

Pc

1

3.38

保温材料

Thermal insulation material

项

Pc

1

N3

备注

Remark

N.3.1

预冷机进出口温度，带远传，压缩机可远程停止，带运行状态指示。

Pre-cooling equipment inlet and outlet temperature, with remote transmission, compressor can be remotely stopped, with operation status indication.
