56302A 586KW Air Cooling Unit for Expander Compressor

56300系列- Heat Exchanger/Pressure Vessel

Tag No.: 56302A

Model: 586KW

Name: Air Cooling Unit for Expander Compressor

Technical parameter

Device Name

Expander compressor end air cooler

Air cooler form

Horizontal blast type

Equipment model

GP3.97×2.6/1-TF24/1-GJL3.97×2.6/1

Land occupation

3.97m×2.6m

Medium parameters inside the tube

Calculation results

Fluid Medium Name

Nitrogen-containing gas

Heat load (kw)

586

Total fluid inlet flow rate (kg/h)

38000

Heat transfer coefficient (w/m2. k)

337.4

Total fluid inlet flow rate (m³/h)

31800





Temperature inlet/outlet (℃)

93/45

Total area of base tube (m2)

70.1

Inlet pressure MPaG

2.34

Total area of fins (m2)

1603.2

Allowable/calculated pressure drop kpa

-/14.48

Fouling coefficient inside the tube (W/㎡-C)



External medium parameters

External medium

air

Total air flow rate (kg/s)

30.3

Air inlet/outlet (℃)

28/47.2

Altitude (m)



Tube bundle and framework parameters

Tube bundle model

GP3.97×2.6-6-70-2.5S-23.4/KL-Ⅱa

Tube box form

Plug type tube box

Number of tube bundles

1

Framework model

GJL3.97×2.6

Tube box material

S30408

Number of heat exchange tubes

225

Closed quantity

1

Design temperature ℃

150

Number of tubes

2

Open quantity



Design pressure Mpa (g)

2.5

Number of tube rows

6

Structural materials

16MnDR/Q235E

Import specifications/quantity

WN150-300/2

Column layout

Equilateral triangle

Base tube material

S30408

Export specification/quantity

WN150-300/2

Heat exchange tube length m

4

Finned tube form

KL

Flange standard

HG/T20615

Heat exchange tube specifications

Ø25×1

fin material

AL1060

Sealing form

RF

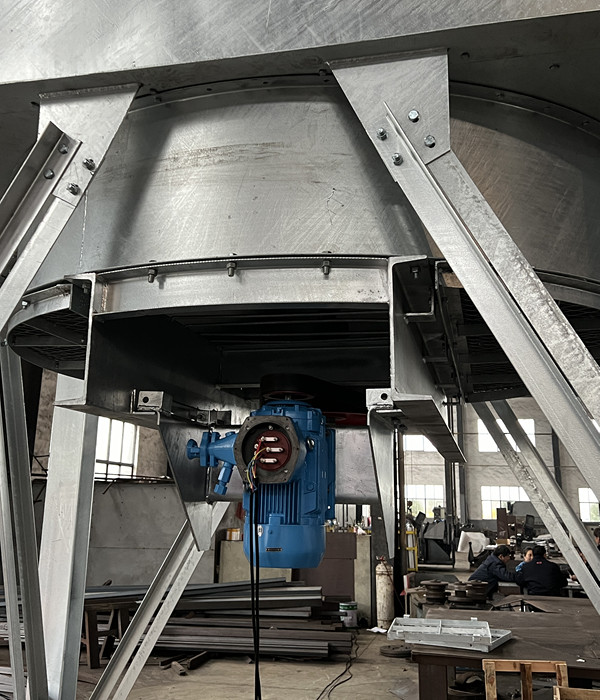

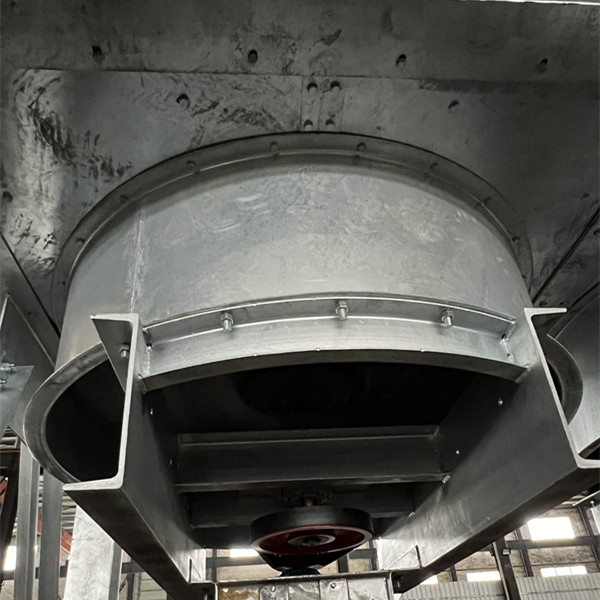

Blower and motor

Blower model

G-TF24L4-Z7.5

Motor model

YBBP-132M-4W

Blade diameter m

2.4

Motor power (kW)

7.5

Number of Blowers

1

Number of motors

1 unit (variable frequency)

Number of blades/blade angle

4 vane /8~10°

Transmission mode

Belt

Blower angle adjustment method

Manual

Motor explosion-proof/protection level

ExdIICT4/IP55

Blower air volume/unit

≥94000 m³/h

noise

＜85dB

Louver specifications

SC3.97×2.6（MANUAL）

Number of louvers

1
